Multiaxial Non-Crimp Fiberglass Fabric for Marine, Wind, and Transportation

Quantity:
SKU: 9076220662
Model: Multiaixal Fiberglass Fabrics

{{ variable.name }}

{{ value.name }}
Product Details

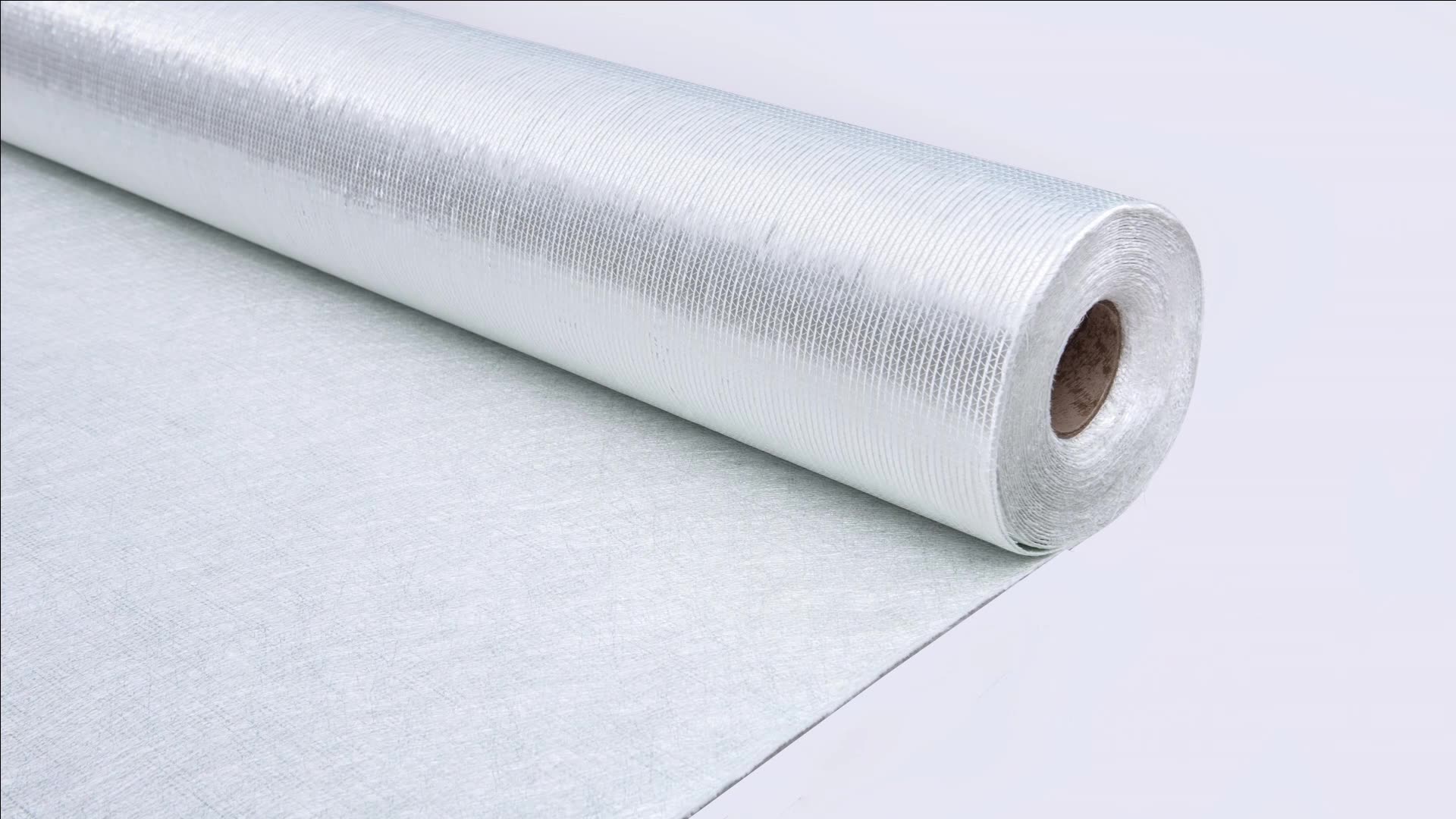

Multiaxial Non-Crimp Fiberglass Fabric for Structural Composite Reinforcement

This structural composite reinforcement is a non-crimp fabric (NCF) made from alkali-free glass fiber, designed to deliver superior mechanical performance in demanding applications. Available in unidirectional, biaxial, triaxial, and quadraxial fiber architectures, it offers reduced fiber crimp, improved load distribution, and a high strength-to-weight ratio. Ideal for vacuum infusion, hand lay-up, RTM, and other closed-mold processes.

Key Selling Points

Reduced Fiber Crimp

Non-crimp structure provides straighter fiber paths, enhancing load transfer and mechanical properties over woven fabrics.

Excellent Resin Wet-Out

Engineered for fast, uniform resin flow, optimizing vacuum infusion and reducing resin consumption.

High Strength-to-Weight Ratio

Lightweight reinforcement helps reduce composite weight while maintaining structural performance.

Versatile Fiber Architecture

Choose from 0°/90° or +45°/-45° biaxial, triaxial, quadraxial, or unidirectional orientations to meet specific loading needs.

ISO 9001:2015 Certified

Manufactured under a certified quality management system, ensuring consistency and reliability.

Technical Specifications

ParameterValue
MaterialAlkali-free glass fiber
Fabric TypeNon-Crimp Fabric (NCF), Stitched
Fiber ArchitectureUnidirectional (0° or 90°), Biaxial (0°/90° or +45°/-45°), Triaxial (+45°/0°/-45° or +45°/90°/-45°), Quadraxial (0°/90°/-45°/+45°)
Weight400–1500 g/m²
Combustible Matter2.0% – 8.0%
Moisture Content<0.2%

Models and Options

  • Unidirectional: 0° or 90° direction
  • Biaxial: 0°/90° or +45°/-45°
  • Triaxial: +45°/0°/-45° or +45°/90°/-45°
  • Quadraxial: 0°/90°/-45°/+45°

Materials and Structure

Made from alkali-free glass fiber, the fabric is stitched into a non-crimp structure. This construction minimizes fiber waviness, improving composite stiffness and strength. The fabric is compatible with vinylester, polyester, and epoxy resins, and is specifically designed for vacuum infusion processes.

Applications

Ideal for marine & yacht building, wind turbine blades, transportation panels, industrial composites, sports equipment, and infrastructure components. Suitable for vacuum infusion, hand lay-up, RTM, and extrusion processes.

Customization

Custom widths, weights, and packaging available upon request. OEM labeling available for distributors. Please contact our team for specific requirements.

Case Studies

Sports Equipment – Surfboards (Thailand)

We supplied container orders of our multiaxial fabric to a surfboard manufacturer. The client achieved weight reduction and performance improvement, with high buoyancy and impact resistance.

Transportation Panels (Mexico)

A transportation panel manufacturer used our fabric for lightweighting and improved corrosion resistance. Good adhesion with core materials was noted.

RV Manufacturers (USA)

For FRP panels in RVs, our fabric provided a glossy surface finish and uniform thickness, contributing to low weight and anti-UV performance.

FAQ

What are the available fiber orientations?

We offer unidirectional (0° or 90°), biaxial (0°/90° or +45°/-45°), triaxial (+45°/0°/-45° or +45°/90°/-45°), and quadraxial (0°/90°/-45°/+45°) configurations.

What is the weight range of these fabrics?

Our multiaxial fabrics range from 400 to 1500 g/m², depending on the architecture.

Which manufacturing processes are compatible?

The fabrics are used in vacuum infusion, hand lay-up, RTM, extrusion, and other closed-mold processes.

Can you provide custom sizes?

Yes, we offer customization of width, length, and weight to meet your specific production needs.

What certifications do you hold?

We are ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018 certified.

What is the minimum order quantity?

The MOQ is 100 m².

What are your delivery terms?

We provide FOB, CIF, and EXW shipping options.

Inquiry Information

MOQ100 m²
Payment Terms30% deposit, 70% balance before shipment
Delivery TermsFOB, CIF, EXW
InspectionPre-shipment test and quality test report
Contact[email protected] | +86 186-2098-8848
